Configure Update Manager Download Service for VUM

Last year I wrote a post on how to install and configure VUM and UMDS, but never got chance to connect UMDS to VUM and ended up downloading patches directly on VUM server via internet.

Once again I am playing with UMDS in lab and in this post we will cover why we need UMDS and how to configure it.

I am not covering steps for installing VUM/UMDS here because they are pretty straight forward and if you are new to these things, you can read the instructions about installation steps from here.

What is Update Manager Download Service?

Update Manager Download Service (UMDS) is an optional component which you can deploy with update manager. We can download upgrades for virtual appliances, patch metadata, patch binaries and notifications etc using UMDS.

Why we need UMDS when VUM is there?

Its a obvious question to ask that why we need UMDS when VUM is capable of downloading and installing patches on Esxi hosts/vApps. The answer of this lies in 2 use cases discussed below:

  • If the security policies in your your environment deny Internet access for the Update Manager VM(s), you can configure UMDS on a server that has Internet Access and automate the export process and transfer files from the UMDS to the Update Manager server by setting up a Web Server on the VM on which UMDS is installed.
  • There is a one to one mapping between VUM and vCenter and if you have multiple vCenter servers in your environment, you can save yourself from deploying ‘n’ number of VUM servers and just configure a single repository in UMDS and pointing all the VUM servers to that central repository and thus saving space/resources.

After you download patch data and notifications with UMDS, and export the downloads so that they become available to the Update Manager server, Update Manager deletes the recalled patches and displays the notifications on the Notifications tab.

Exploring UMDS

Post installation of UMDS, you can use the vmware-umds command to configure the UMDS server. This executable is located in the installation directory of UMDS, which defaults to C:\Program Files (x86)\VMware\Infrastructure\Update Manager.

To list the current configuration of UMDS, run ‘vmware-umds  -G’ command

PS C:\Program Files (x86)\VMware\Infrastructure\Update Manager> .\vmware-umds -G
Configured URLs
URL Type Removable URL
HOST NO
HOST NO https://hostupdate.vmware.com/software/VUM/PRODUCTION/main/vmw-depot-index.xml
HOST NO https://hostupdate.vmware.com/software/VUM/PRODUCTION/csco-main/csco-depot-index.xml
VA NO http://vapp-updates.vmware.com/vai-catalog/index.xml

Patch store location : C:\Patch-Store
Export store location :
Proxy Server : Not configured

Host patch content download: enabled
Host Versions for which patch content will be downloaded:
embeddedEsx-6.0.0-INTL
embeddedEsx-5.0.0-INTL
embeddedEsx-5.1.0-INTL
embeddedEsx-5.5.0-INTL

Virtual appliance content download: disabled

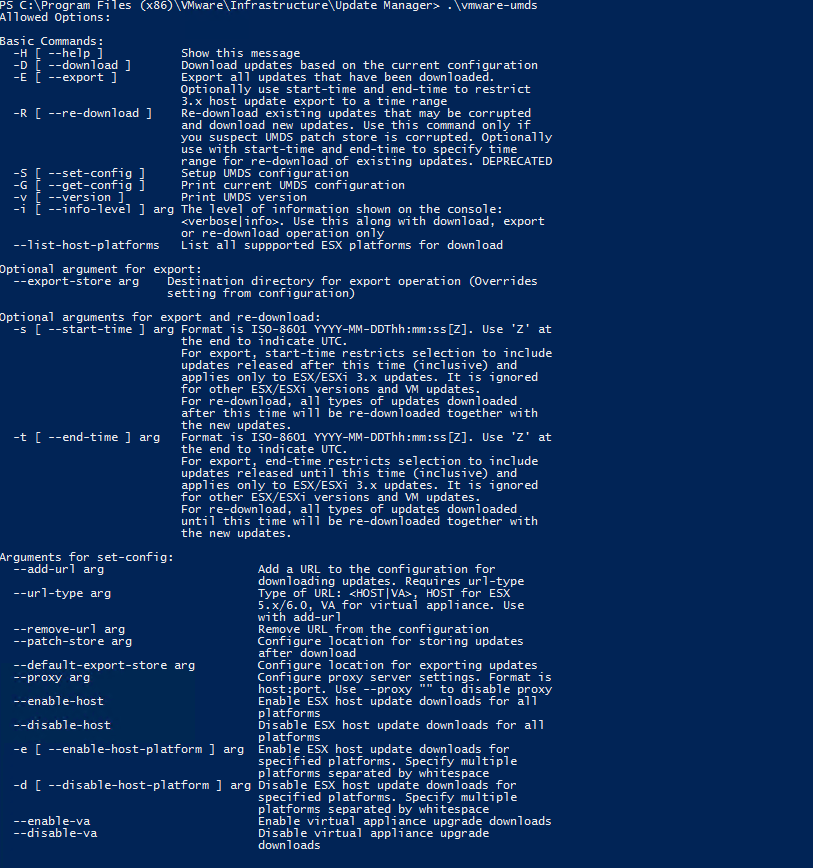

To list all available option with umds, run vmware-umds command without any arguments


You can list the host platforms that is supported by UMDS 6.0 by running below command:

PS C:\Program Files (x86)\VMware\Infrastructure\Update Manager> .\vmware-umds.exe --list-host-platforms
Supported ESX Host platforms:
 embeddedEsx-5.0.0
 embeddedEsx-5.1.0
 embeddedEsx-5.5.0
 embeddedEsx-6.0.0

Configure URLs for Hosts and Virtual Appliances

By default VUM have few URL’s configured for downloading the patches etc. You can add/remove additional download URL’s for Host and VA as shown below:

Add a download URL for host updates

vmware-umds -S --add-url https://download_URL/index.xml --url-type HOST

Add a download URL for virtual appliance upgrades

vmware-umds -S --add-url https://download_URL/index.xml --url-type VA

Remove a URL so that UMDS does not download data from it anymore

vmware-umds -S --remove-url https://download_URL/index.xml

Configuring UMDS and connecting it to VUM

1: Disable patch download for older version of Esxi hosts

By default UMDS 6.0 is configured to download host patches for Esxi 5.0/51. If your environment do not have any 5.X hosts, you can disable patch downloads for these by running below command:

PS C:\Program Files (x86)\VMware\Infrastructure\Update Manager> .\vmware-umds -S -d embeddedEsx-5.0.0-INTL
File path = C:\Program Files (x86)\VMware\Infrastructure\Update Manager\downloadConfig.xml
Setting up UMDS configuration
Host update downloads for platform embeddedEsx-5.0.0-INTL: Disabled

I have disabled all 5.X versions in my lab setup.

2: Enables the download of ESXi host updates only

If you do not wish to update any virtual appliance in your environment using VUM, you can disable the downloads for VA’s by running below command:

PS C:\Program Files (x86)\VMware\Infrastructure\Update Manager> .\vmware-umds -S --enable-host --disable-va
File path = C:\Program Files (x86)\VMware\Infrastructure\Update Manager\downloadConfig.xml
Setting up UMDS configuration
Host update downloads for platform embeddedEsx-5.0.0-INTL: Enabled
Host update downloads for platform embeddedEsx-5.1.0-INTL: Enabled
Host update downloads for platform embeddedEsx-5.5.0-INTL: Enabled
Host update downloads: Enabled
Virtual appliance upgrade downloads: Disabled

You can play around other options available with enabling/disabling downloads as show below:

Enable download of both ESXi host updates and virtual appliance upgrades

vmware-umds -S --enable-host --enable-va

Enable download of virtual appliance upgrades only

vmware-umds -S --disable-host --enable-va

Change the UMDS Patch Repository Location

Default directory where UMDS stores all downloaded patches etc is C:\ProgramData\VMware\VMware Update Manager\Data\. You can change it by running below command:

PS C:\Program Files (x86)\VMware\Infrastructure\Update Manager> .\vmware-umds -S --patch-store C:\Patch-Store
File path = C:\Program Files (x86)\VMware\Infrastructure\Update Manager\downloadConfig.xml
Setting up UMDS configuration
Directory for storing downloaded updates: C:\Patch-Store
Directory C:\ProgramData\VMware\VMware Update Manager\Data\ is no longer used as the patch store. You may want to delete its contents or move it to the new location C:\Patch-Store
Registry Updated80000002::SOFTWARE\VMware, Inc.\VMware Update Manager::C:\Patch-Store

Note: If you are running the commands from windows powershell, you need elevated access to power shell else you are gonna get registry can’t be updated error.

Downloading and Exporting Patches

Run ‘vmware-umds -D’ command to instruct UMDS to download patches based on current configuration. Once the download is completed, you will see the details about number of patches downloaded, size of the download etc.


Once the download of patches is completed, we need to export it so that VUM server can use these. There are 2 ways of doing so:

1: Export the downloaded patches to an external drive and use it for importing it on VUM server. You can do so by creating a new directory for exporting the patches and then running the export command as shown below:

PS C:\Program Files (x86)\VMware\Infrastructure\Update Manager> .\vmware-umds -E --export-store C:\Patch-Repo
INFO - Initializing connection pool
INFO - Registering sequences
INFO - Validating database version
Starting export of updates...
INFO - Exporting ESX 3x update metadata and packages
INFO - Exporting ESX 4x and third party update metadata and packages
INFO - Exporting data to folder :C:\Patch-Repo
INFO - Copying file. Source file:C:\Patch-Store\hostupdate\__hostupdate20-consolidated-index__.xml, Destination file: C
:\Patch-Repo\hostupdate\__hostupdate20-consolidated-index__.xml
WARN - No host update meta data found.
INFO - Packages exported: 0
INFO - vendor index contains 3 vendors.

2: Second method is exporting via IIS. You need to add IIS role in your UMDS server. I am not going to cover the steps for IIS installation as there are tons of articles available on internet for doing so.

Once the IIS role has been installed, we need to add our patch repository directory as a virtual directory in IIS server.

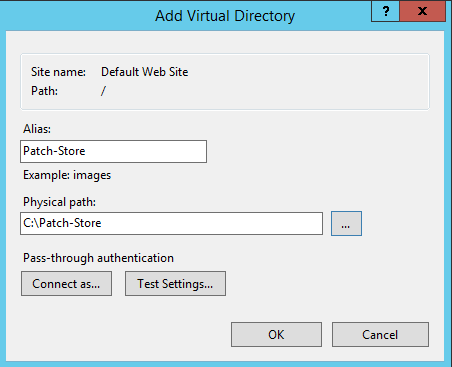

Connect to the Web Server via IIS manager and select the default website and right click on it to add a virtual directory. Provide an alias name and location of directory where UMDS downloaded the patches

dls-6

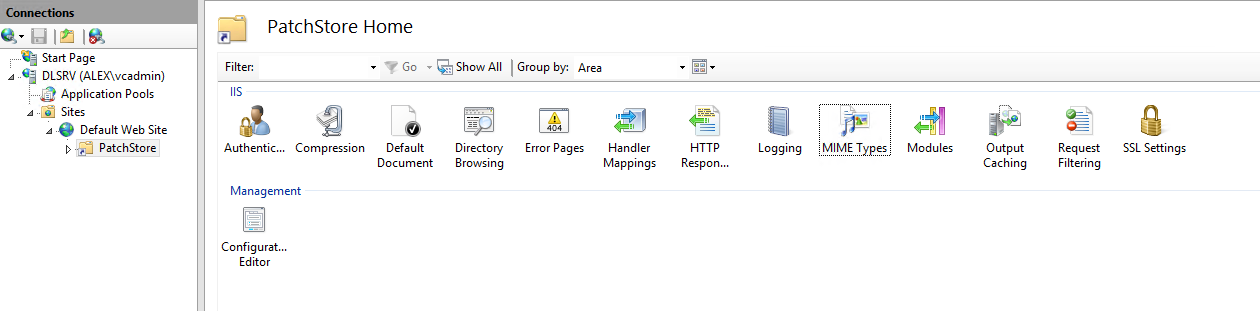

Once the directory is added, select it and click on MIME Types.

dls-7

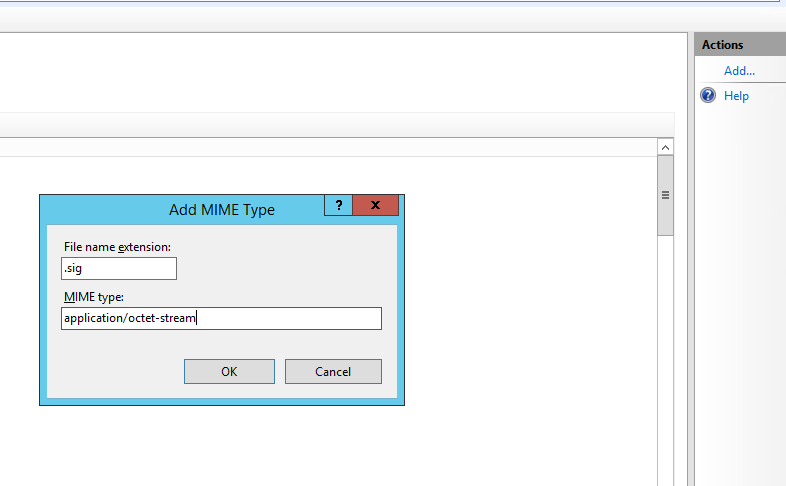

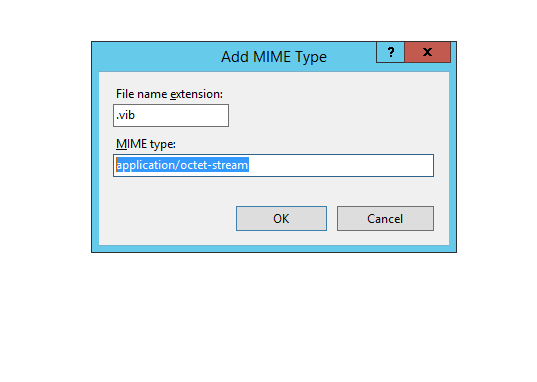

add .vib and .sig file extensions as MIME types.

dls-8

dls-9

Once the MIME types have been added, select the virtual directory once again and click on Directory Browsing

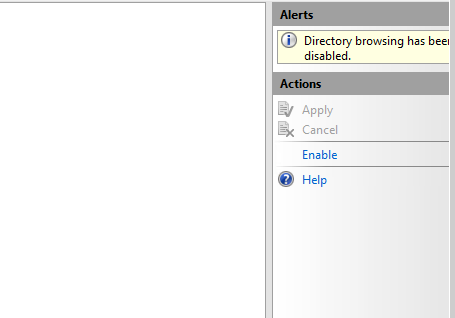

Enable the directory browsing so that we can access it over URL

dls-12

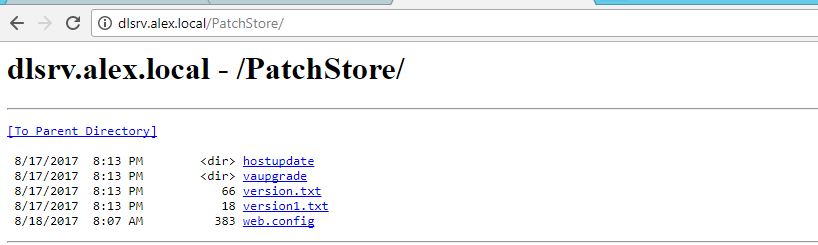

Form your VUM server, try accessing the virtual directory by typing http://UMDS-FQDN/virtualdirectoryame

dls-13

Configure VUM to use the shared repository instead of direct Internet Connection

Login to Web Client, navigate to Update Manager, select the VUM Server and move to the Manage tab. Go to Settings-> Download Settings and click Edit

dls-14

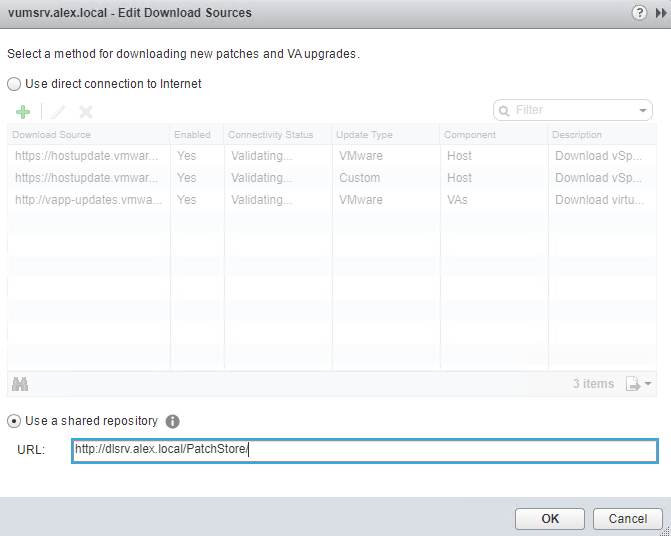

Select Use a shared repository and enter the URL for the download location configured previously

dls-15

Verify the configuration by refreshing the Web Client

dls-16

And that’s it. VUM will now download the patches from UMDS instead of internet.

In next post we will see how to create baselines and remediate Esxi hosts.

I hope you find this post informational. Feel free to share this on social media if it is worth sharing. Be sociable 🙂
